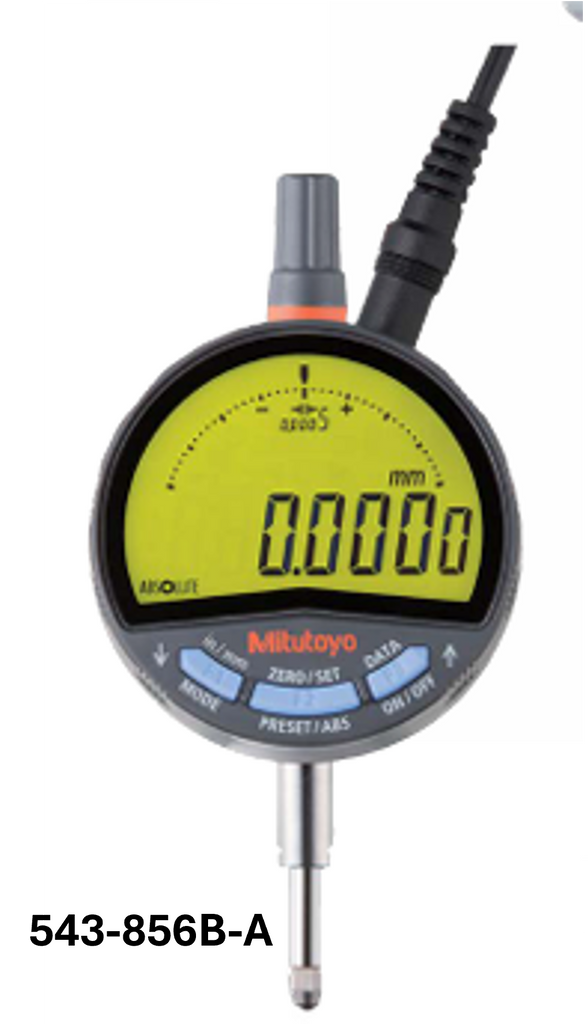

Mitutoyo 543-856B-A Digimatic Indicator, 0-.5"/0-12.7mm Range, .00005"Selectable Resolution

Item Description

ID-F Series - AC Powered - Green/Red Backlit Display

Digimatic Indicators / High-performance ABS Digimatic Indicators

• Range: 0-.5"/0-12.7mm
• Resolution:  0.005mm / 0.001mm / 0.01 mm / 0.00002" / .00005" / 0.0001" / 0.0005"/ 0.001" (selectable)
• Maximum Permissible Error: ±0.0001"/±0.0025mm
• Hysteresis: 0.00008"/0.002mm
• Repeatability: 0.00008"/0.002mm
• Measuring for MPL (N): 1.5 or less
• Interface: d1/d2/S1
• 20 µinch/0.5 µm resolution.
• Large screen and analog bar.
• Functions
  • Peak detection (MAX/MIN)
  • This series adopts an external power supply
  to operate a bright backlit display. The display
  color helps you make tolerance judgment at
  a glance.
  •  Runout range measurement (MAX - MIN)
  Note: Peak detection
  1) Sampling rate:
  Resolution 0.0005 mm   50 readings/s
  Resolution 0.001 mm, 0.01 mm   500 readings/s
  2) Capturing speed:
  Resolution 0.0005 mm   50 μm/s
  Resolution 0.001 mm, 0.01 mm   500 μm/s
• Zero-setting (INC system
• Presetting (ABS system)
• Measuring direction switching
• Tolerance judgment
• Resolution switching
• Calibration period notification function. The LCD displays an icon to notify the user when the set calibration time approaches. This facilitates the proper precision management of ID-C/ID-F.
• Simple Calculation Function.
• New Digimatic S1 Output*. S1 is the new Mitutoyo bidirectional output format
  that enables reading and writing information to the gages such as sending a zero
  command, TIR reset, calibration date warnings, and the ability to poll the serial
  number for smoother measurement operation. Communication
  is supported by the new Input Tool and SPC cable.
• The units have large screens that can display various information in an easy-to-read manner. They also have an analog bar, convenient for observing subtle movements
  such as the approach to tolerance.
• With Flat back
• With SPC output
