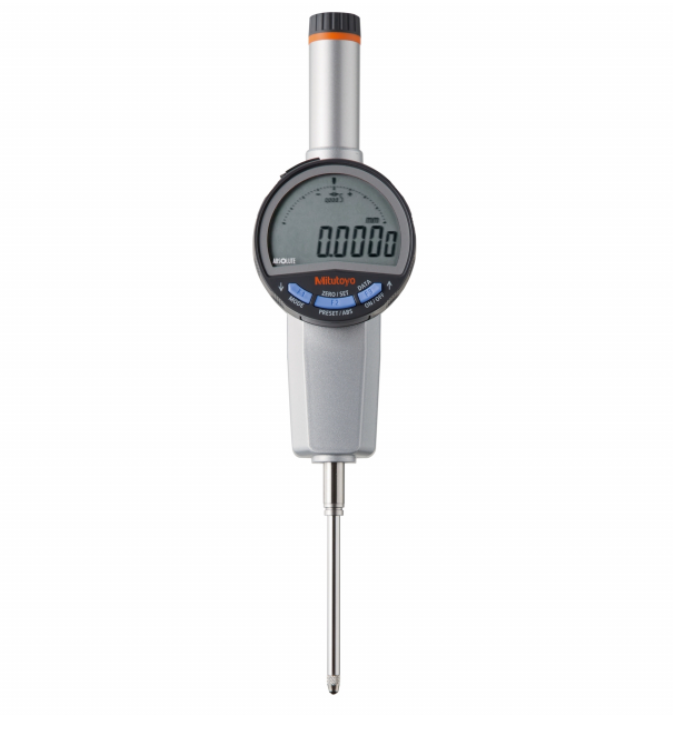

Mitutoyo 543-737B Absolute Digital Indicator, 2"/50.8mm Range, .0005"/0.01mm Resolution

Item Description

• Range: 2"/50.8mm
• Resolution: .0005"/0.01mm
• Accuracy: .0016"
• Flat Back
• GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters
• The positive/negative count resulting from the spindle's up/down movement can be toggled
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors
• The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading

• SPC output
