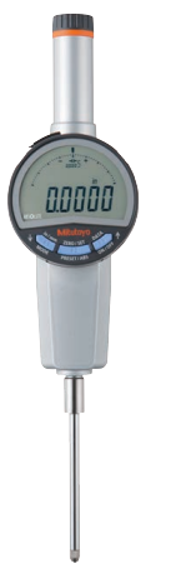

Mitutoyo 543-732B-02 Digimatic Indicator, 0-2"/0-50.8mm Range, .00005" Selectable Resolution

Item Description

• Range: 0-2"/0-50.8mm
• Selectable resolution: 0.00002"/0.00005" /0.0001"/0.0005"/0.0005mm/0.001mm 0.01mm
• Accuracy: +/- 0.00012 inch
• Hysteresis Maximum Permissible Error: 0.00008
• Repeatability: Maximum Permissible Error: 0.00008
• Measuring Force: 2.3 or less
• Preset, Zero-Set, inch/mm, +/- direction and GO/±NG functions
• ABSOLUTE Encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off)
• Large, easy-to-read LCD.
• GO/+/-NG judgement is performed by setting the upper and lower tolerances for max., min. and runout values
• Internal calculations using the simple formula of [F(x)=Ax)] are available.
• The next calibration due date can be set with an alarm to improve instrument management
• ASME / ANSI / AGD Type
• With flat back

• With SPC output
