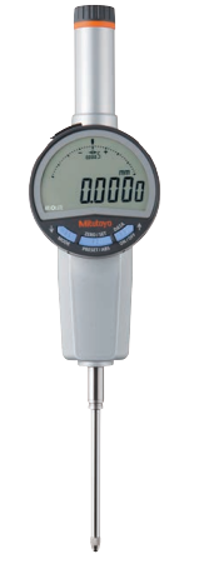

Mitutoyo 543-730B-02 METRIC Digimatic Indicator ID-C, 0-50.8mm Range,0.0005mm/ 0.001mm/0.01mm Resolution
$ 767.00 | List Price: $ 924.00
Item Description
- Range: 0-50.8mm METRIC ONLY
- Selectable Resolution: 0.0005mm/0.001mm/0.01mm
- Maximum Permissible Error: 0.005mm
- Hysteresis Maximum Permissible Error: 0.002mm
- Repeatability Maximum Permissible Error: 0.002mm
- Measuring Force: 2.3 or less
- Interface: d1/d2/S1
- Display 7 segments height: 11.0 mm, Analog bar (±20 scale)
- Display rotation 330 °
- Possible plunger direction All directions 0.0005 mm models: Plunger downward only
- Power supply Lithium metal battery CR2032 (1pc.)
- Battery life*3 Approx. 2.5 years (normal use), Approx. 2,700 hours(continuous use)
- Detection method Electrostatic capacitance type absolute linear encoder
- Response speed No limit
- The next calibration due date can be set with an alarm to improve instrument management
- ISO / JIS Type
- With Flat Back
