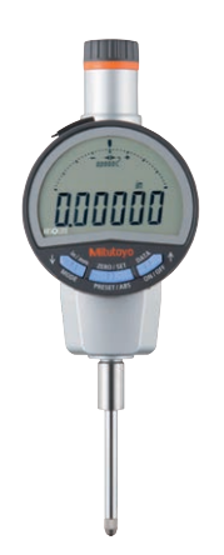

Mitutoyo 543-727B-02 ABSOLUTE Digimatic Indicator ID-C, 0-1"/0-25.4mm Range, 0.0005"/0.01mm Resolution

Item Description

• Range: 0-1"/0-25.4mm
• Resolution:  0.0005"/0.01mm
• Maximum Permissible Error: +/- 0.0010"
• Hysteresis Maximum Permissible Error: 0.0010"
• Repeatability Maximum Permissible Error: 0.0005"

• Measuring Force: 1.8 or less
• Interface: d1/d2/S1
• Display 7 segments height: 11.0 mm, Analog bar (±20 scale)
• Display rotation 330 °
• Possible plunger direction All directions 0.0005 mm models: Plunger downward only
• Power supply Lithium metal battery CR2032 (1pc.)
• Battery life*3 Approx. 2.5 years (normal use), Approx. 2,700 hours (continuous use)
• Detection method Electrostatic capacitance type absolute linear encoder
• Response speed No limit
• Errors, Alarms Various setting errors, Sensor error, Display overflow, etc.
• The next calibration due date can be set with an alarm to improve instrument management
• Inch/Metric: ASME / ANSI / AGD Type

• INDICATOR WITH FLAT BACK
