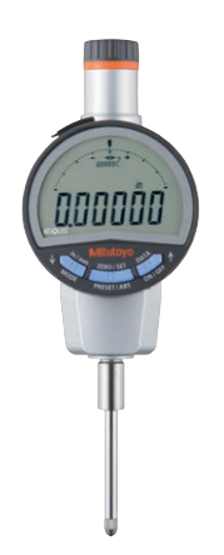

Mitutoyo 543-726B-02 ABSOLUTE Digimatic Indicator ID-C, 0-1"/0-25.4mm Range, 0.0005"/0.01mm Resolution
$ 491.00 | List Price: $ 591.00
Item Description
- Range: 0-1"/0-25.4mm
- Resolution: 0.0005"/0.01mm
- Maximum Permissible Error: 0.02mm
- Hysteresis Maximum Permissible Error: 0.02mm
- Repeatability Maximum Permissible Error: 0.01mm
- Measuring Force: 1.8 or less
- Interface: d1/d2/S1
- Display 7 segments height: 11.0 mm, Analog bar (±20 scale)
- Display rotation 330 °
- Possible plunger direction All directions 0.0005 mm models: Plunger downward only
- Power supply Lithium metal battery CR2032 (1pc.)
- Battery life*3 Approx. 2.5 years (normal use), Approx. 2,700 hours (continuous use)
- Detection method Electrostatic capacitance type absolute linear encoder
- Response speed No limit
- Errors, Alarms Various setting errors, Sensor error, Display overflow, etc.
- The next calibration due date can be set with an alarm to improve instrument management
- Inch/Metric: ISO/JIS Type
- INDICATOR WITH FLAT BACK
