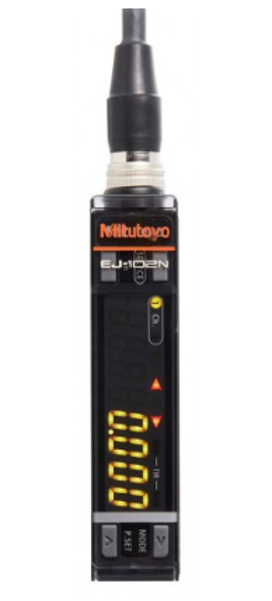

Mitutoyo 542-081 EJ Main Module Counter Industrial Interface-Mounted Compact Counter

Item Description

* Unit: Inch/mm

• Resolution: 0.0002, 0.00005, 0.00002, 0.000005 (inch)/0.005, 0.001, 0.0005, 0.0001 (mm)
  * Number of linear gage connection ports: 2
  * Supported gage signal: Differential square wave, differential square wave with reference point mark
  * Maximum input frequency: 5 MHz
  * User Interface Display Negative sign + 8 digits and indicator (1 gage value displayed, manually switchable)
  * External I/O:
  ~Number of I/O ports:
  ~~Input: 4 ports (Ch switch, peak clear, data hold, preset)
  ~~Output: 4 ports (Err/ALLGO, Tolerance judgment)
  * Compatible communication standards: CC-Link, USB (Supported with optional interface units)
  * Max. number of linked units: EJ Counter 8 units + 1 (optional) interface unit (Max. number of linear gage connections: 16)
  * Power supply:
  ~Input voltage: 10 V to 27 V DC
  ~Power consumption: 1 unit only: 3 W or less (Includes 2 linear gages) Max. number of links: 30 W or less (Interface unit and 16 linear gages included)
  * Operating temperature (humidity) ranges:  0 to 50 °C (RH 20 to 80%, non-condensing)
  * Storage temperature (humidity) ranges: -10 to 60 °C (RH 20 to 80%, non-condensing)
  * Mass:  Approx. 120 g
•  Applicable gauge: LG100 and LG200
