Mitutoyo 516-405-26 92pc Square Inch Steel Gage Block Set Grade 0
$ 6,570.00 | List Price: $ 8,760.00
Item Description
- Steel
- 92pc
- Square (Inch)
- Grade 0
- 1 Block = .0625"
- 1 Block = 078125"
- 1 Block = .09375"
- 1 Block = .100025"
- 1 Block = .10005"
- 1 Block = .100075"
- 1 Block = .109375"
- 9 Blocks = ,1001" - .1009" Step = .0001"
- 49 Blocks = .101" - .149" Step = .001"
- 4 Blocks = .05" - .95" Step = .05"
- 19 Blocks = .16" - .19" Step= .01"
- 4 Blocks = 1" - 4" Step = 1"
- The Mitutoyo Inch Square Gage Block Set in box can be used on a wide range of application measurements and will retain stable longitudinal and lateral orientation.
- Specific, repeated heat treatment of steel blocks reduce deterioration change over time
- Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Includes 19 pcs of miscellaneous accessories in set
- Inspection Certificate included
- Supplied in a solid wooden case

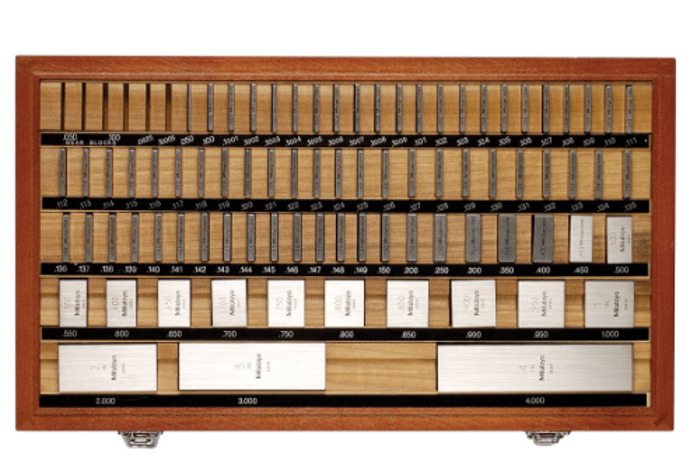

PHOTO FOR REPRENSENTATIONAL PURPOSES ONLY
