Mitutoyo 516-222-26 36pc Square Inch CERA Gage Block Set Grade 0

Item Description

• CERA (Ceramic)
• 36pc
• Square (INCH)
• Grade 0
• 1 Block = .05"
• 9 Blocks = .1001 - .1009" Step= .0001"
• 9 Blocks = .101 - .109" Step= .001"
• 9 Blocks = .11 - .19" Step= .01"
• 5 Blocks = .1 - .5" Step = .1"
• 3 Blocks = 1", 2", 4" Step = 1"
• The Mitutoyo Inch Square Gage Block Sets can be used on a wide range of application measurements and will retain stable longitudinal and lateral orientation.
• The Mitutoyo Inch Square Gage Block Sets offer exceptional precision and great versatility for a wide range of measurement applications including cutting tool positioning, angle measurement with a sine bar, taper measurements with a roller, and inspection of depth micrometers. The square gage block retains stable orientation both longitudinally and laterally, and they are available in different grades, sizes and steps.
• The Mitutoyo innovative lapping technique makes our gage blocks some of the most accurate and trusted instruments in the world, featuring exceptional flatness and ideal surface roughness.  The CERA gage blocks are constructed of ceramic materials with superior surface qualities for exceptional durability and reduced deformation.

• Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
• Black characters on gage blocks are inscribed by laser and clearly visible
• Inspection Certificate included

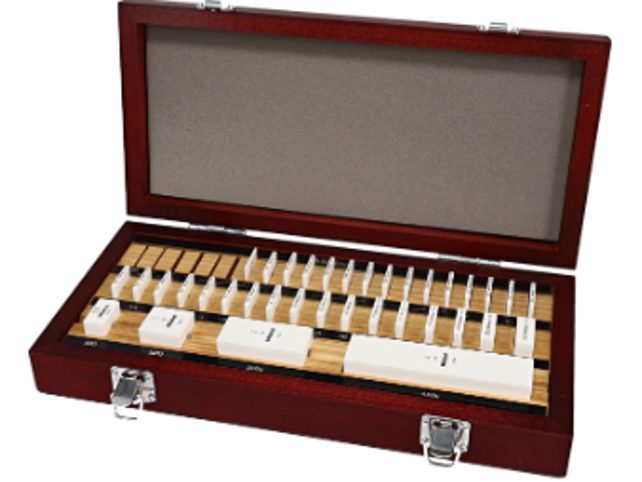

• Supplied in a solid wooden case


PHOTO FOR REPRESENTATIONAL PURPOSES ONLY
