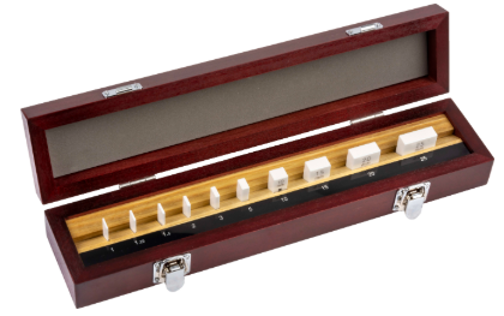

Mitutoyo 516-152-26 10pc CERA Metric Micrometer Inspection Gage Block Set Grade 0

Item Description

• CERA (Ceramic)
• 10pc
• Rectangular (METRIC)
• Grade 0
• 10 Blocks = 1.00, 1.25, 1.50, 2, 3, 5, 10, 15, 20, 25mm

• The Mitutoyo Micrometer Inspection Gage Block set was designed specifically for micrometer inspection.
• Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME)
  B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
• Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
• Black characters on gage blocks are inscribed by laser and clearly visible

• Supplied in a solid wooden case

• The Mitutoyo Micrometer Inspection Gage Block set is used to inspect a variety of micrometers with high accuracy. These gage blocks can be stacked for either horizontal or vertical measurements. The CERA gage blocks are constructed of ceramic materials with superior surface qualities and corrosion resistance.

• Innovative lapping techniques give these gage blocks exceptional flatness and ideal surface roughness


PHOTO FOR REPRESENTATIONAL PURPOSES ONLY
