Mitutoyo 516-106-26 10pc Metric Micrometer Inspection Gage Block Set Grade 0
$ 471.00 | List Price: $ 628.00
Item Description
- Steel
- 10pc
- Rectangular (METRIC)
- Grade 0
- 10 Blocks = 2.5, 5.1, 7.7, 10.3, 12.9, 15, 17.6, 20.2, 22.8, 25mm
- Optical Parallel (t=12mm)
- The Mitutoyo Micrometer Inspection Gage Block set was designed specifically for micrometer inspection.
- Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME)
B89.1.9-2002 standard for flatness, length, parallelism, and surface finish - Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Supplied in a solid wooden case
• The Mitutoyo Micrometer Inspection Gage Block set is used to inspect a variety of micrometers with high accuracy. These gage blocks can be stacked for either horizontal or vertical measurements. The Mitutoyo steel gage blocks are constructed of high-carbon, high-chrome steel while our CERA gage blocks are constructed of ceramic materials with superior surface qualities and corrosion resistance.
• Parallelism can be measured by using the optical parallel supplied with the gage block set.
- Innovative lapping techniques give these gage blocks exceptional flatness and ideal surface roughness
- Specific, repeated heat treatment of steel blocks reduce deterioration change over time

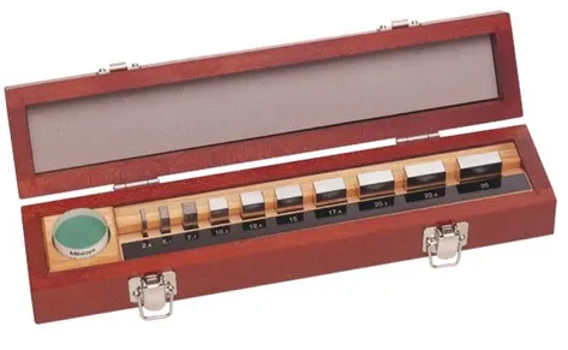

PHOTO FOR REPRESENTATIONAL PURPOSES ONLY
