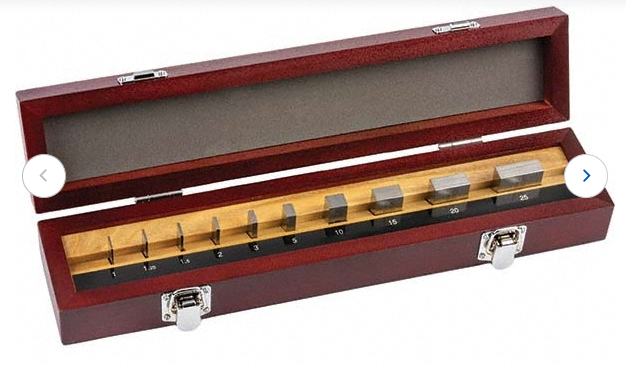

Mitutoyo 516-103-26 10pc Steel Metric Micrometer Inspection Gage Block Set Grade 0

Item Description

• Steel
• 10pc
• Rectangular (METRIC)
• Grade 0
• 10 Blocks = 1.00, 1.25, 1.50, 2, 3, 5, 10, 15, 20, 25mm

• The Mitutoyo Micrometer Inspection Gage Block set was designed specifically for micrometer inspection.

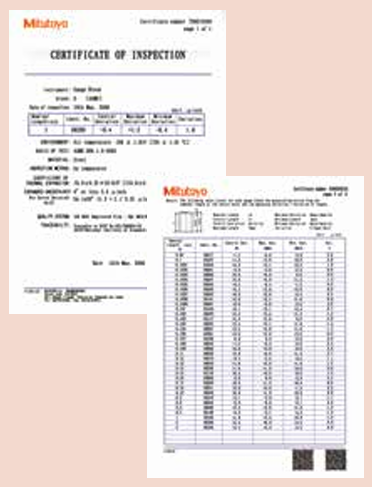

  • Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME)
  B89.1.9-2002 standard for flatness, length, parallelism, and surface finish

  • Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks

  • Black characters on gage blocks are inscribed by laser and clearly visible


  • Supplied in a solid wooden case

  • The Mitutoyo Micrometer Inspection Gage Block set is used to inspect a variety of micrometers with high accuracy. These gage blocks can be stacked for either horizontal or vertical measurements. The Mitutoyo steel gage blocks are constructed of high-carbon, high-chrome steel while our CERA gage blocks are constructed of ceramic materials with superior surface qualities and corrosion resistance.

• Innovative lapping techniques give these gage blocks exceptional flatness and ideal surface roughness
• Specific, repeated heat treatment of steel blocks reduce deterioration change over time

PHOTO FOR REPRESENTATIONAL PURPOSES ONLY
