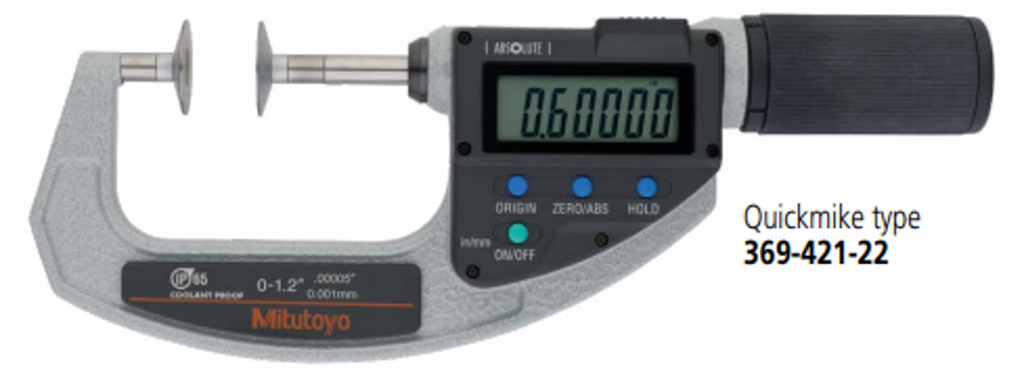

Mitutoyo 369-421-22 QuickMike Non-Rotating Spindle Digimatic Disc Micrometer, 0-1.2"/0-30.48mm Range, .00005"/0.001mm Resolution
$ 1,013.00 | List Price: $ 1,220.00
Item Description
- Range: 0-1.2" / 0-30.48mm
- Resolution: .00005" / 0.001mm
- Accuracy: ±0.0002"
- Flatness: 0.00004"
- Parallelism: 0.0002"
- Measuring Force: 3-8N
- Protection level IP65
- Origin-set, zero-setting, data hold, inch/mm conversion
- Alarm: Low voltage, counting value composition error
- Equipped with Friction Thimble
- Disc micrometer is designed to easily measure root tangent length of spur gears and helical gears
- Heat-insulated frame, tapered (on the anvil side) for hard-to-reach places
- Non-rotating spindle eliminates torque on workpiece.
- Speedy spindle feed of 10mm/rev. (Quickmike type)
- Diameter of measuring disk: 20mm / .787"
- ABSOLUTE proprietary technology
- With SPC output
- With plastic fitted case
