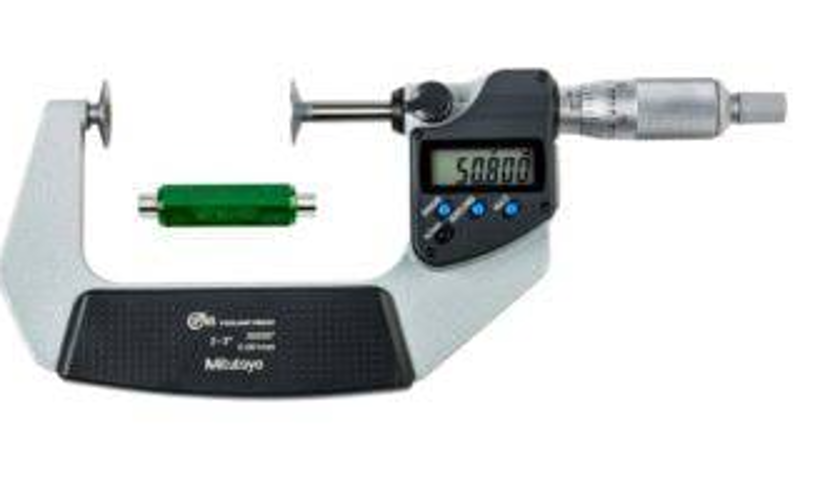

Mitutoyo 323-352-32 Digimatic Disc Micrometer, 2-3"/50-75mm Range, 0.00005"/0.001mm Resolution
$ 681.00 | List Price: $ 821.00
Item Description
- Range: 2-3"/50-75mm
- Resolution: 0.00005"/0.001mm
- Accuracy: +/-0.0003"
- Flatness: 0.00004"
- Parallelism: 0.0003"
- Anvil Diameter: 0.787"
- Measurable module: 0.5-6
- IP65 protection level, enabling use in environments exposed to cutting oil, etc.
- Measures "root tangent length" of spur gears, and helical gears
- Equipped with Ratchet Stop for constant measuring force.
- Rotating Spindle Type
- With SPC data output
- With fitted case
