Mitutoyo 264-622 U-Wave Fit U-Wave-TM Transmitter for Mitutoyo Micrometers, IP67 Model

$ 154.00 | List Price: $ 190.00

Item Description

  • The Mitutoyo U-Wave Fit U-Wave-TM Transmitter sends data from Coolant-Proff (IP65) micrometers to the U-Wave-R receiver connected to a computer. In order to use the U-Wave measurement data wireless communication system you will need the following three parts: U-Wave-R Receiver, U-Wave-TC Transmitter (this product), U-Wave_Fit Connection Unit (for your specific Mitutoyo device)

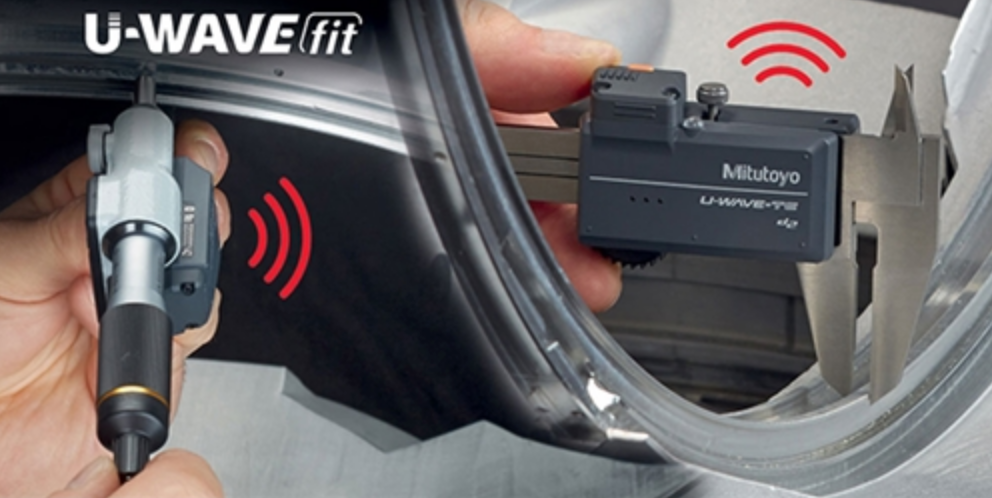

  • The U-Wave-TM transmitter connects to a Coolant-Proof (IP65) Mitutoyo micrometer and transmits data points and measurements up to 60 feet. Note: images shown above show both the U-Wave-TM and the connection unit. The U-Wave-TM has the following features:
  • Communication range up to 60 feet
  • Connect up to 100 U-Wave-T units with one U-Wave-R receiver
  • The transmitter is designed to fit in the space behind the display, and the connecting cable has been replaced by a rigid connector
  • 2.4GHz wireless system for reliable and secure data transmission
  • Easy data export to Microsoft, Excel or SPC software applications
  • Transmitter confirms data transfer by an LED signal or buzzer
  • IP67 transmitter is available to ensure a coolant-proof system
  • 2 Options Available: Model 264-622 LED light only (IP67 model), and Model 264-623 LED & Buzzer (buzzer model)
We currently have 20 in stock.
