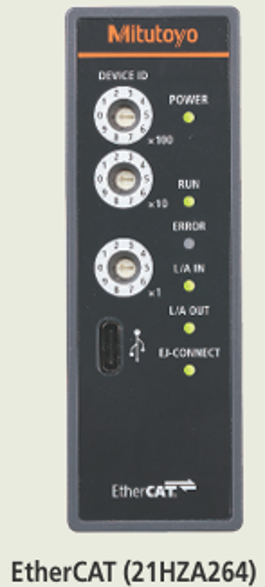

Mitutoyo 21HZA264 EtherCAT Module for EJ Main Module Counter Industrial Interface-Mounted Compact Counter

Item Description

• Applicable interface: EtherCAT

• User Interface: POWER (green), RUN (green), ERROR (red), L/A IN (green), L/A OUT (red), EJ-CONNECT (green)
• Functions: Common protocols for USB and EtherCAT, Readout of current value, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear

• Power supply: Power is supplied from EJ Counter (Cannot be charged via USB)
• Operating temperature (humidity) ranges:  0 to 50 °C (RH 20 to 80%, non-condensing)
• Storage temperature (humidity) ranges: -10 to 60 °C (RH 20 to 80%, non-condensing)
• A modular, high-speed, space-saving counter for linear gage suitable for in-line and general use.
• Up to 8 counters can be linked providing the capacity to connect up to 16 gages.
• DIN rail mountable.
• All linked units can be driven by a single power source.
• Data can be output through an industrial interface by linking a counter with an interface unit.
• Enables sum/difference operations between 2 gages connected to the same counter.
