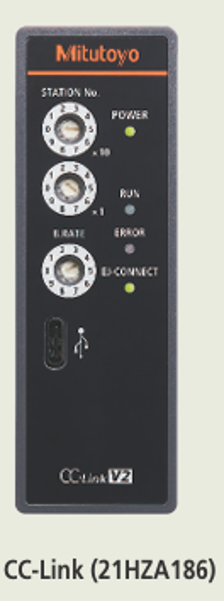

User Interface: ~Display: POWER (green), RUN (green), ERROR (red), EJ-CONNECT (green) ~Switch: Rotary switch×3 (Exchange number settings×2, communication speed settings×1) Functions: Common protocols for USB and CC-Link, Readout of current value*, Current value hold (software hold), Parameter setting on EJ counter, Tolerance judgment value settings, Preset value settings, preset/zero-set clear, peak clear, error clear * For CC-Link, Ver. 1.10 allows for transition only while Ver. 2.00 allows for both cyclic communication and transition.
Power supply: Power is supplied from EJ Counter (Cannot be charged via USB)
Operating temperature (humidity) ranges: 0 to 50 °C (RH 20 to 80%, non-condensing)
Storage temperature (humidity) ranges: -10 to 60 °C (RH 20 to 80%, non-condensing)
A modular, high-speed, space-saving counter for linear gage suitable for in-line and general use.
Up to 8 counters can be linked providing the capacity to connect up to 16 gages.
DIN rail mountable.
All linked units can be driven by a single power source.
Data can be output through an industrial interface by linking a counter with an interface unit.
Enables sum/difference operations between 2 gages connected to the same counter.
