Mahr Federal No. 2034101 Maxum II Inductive Digital Comparator *USED/RECONDITIONED*

Item Description

The Mahr 2034101 µMaxµm II is a standard‑model inductive digital comparator with ±1 mm (±0.040 in) range, selectable high‑resolution readout, and multiple data output options

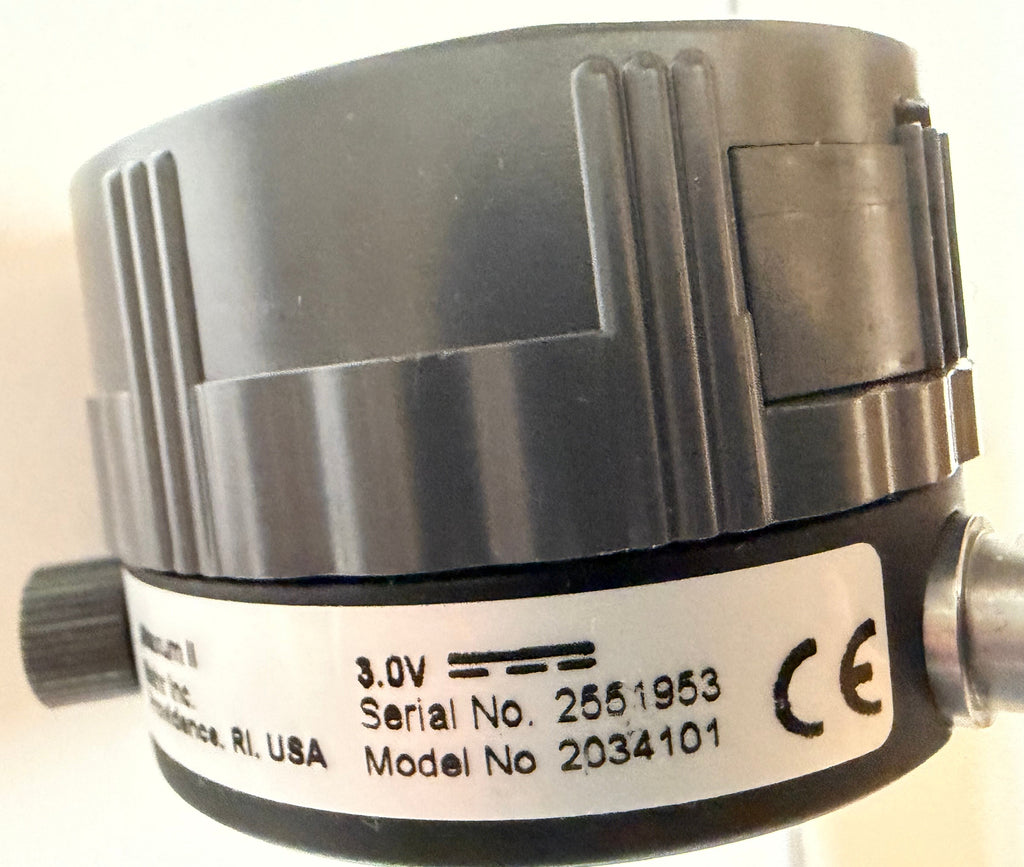

• Model: µMaxµm II Standard (Art. no. 2034101)

• Measuring range: ±1 mm / ±0.040 in

• Resolution: 0.0002 mm / 0.00001 in, 0.0005 mm / 0.00002 in, 0.001 mm / 0.00005 in, 0.002 mm / 0.0001 in, 0.005 mm / 0.0002 in, 0.01 mm / 0.0005 in, 0.02 mm / 0.001 in

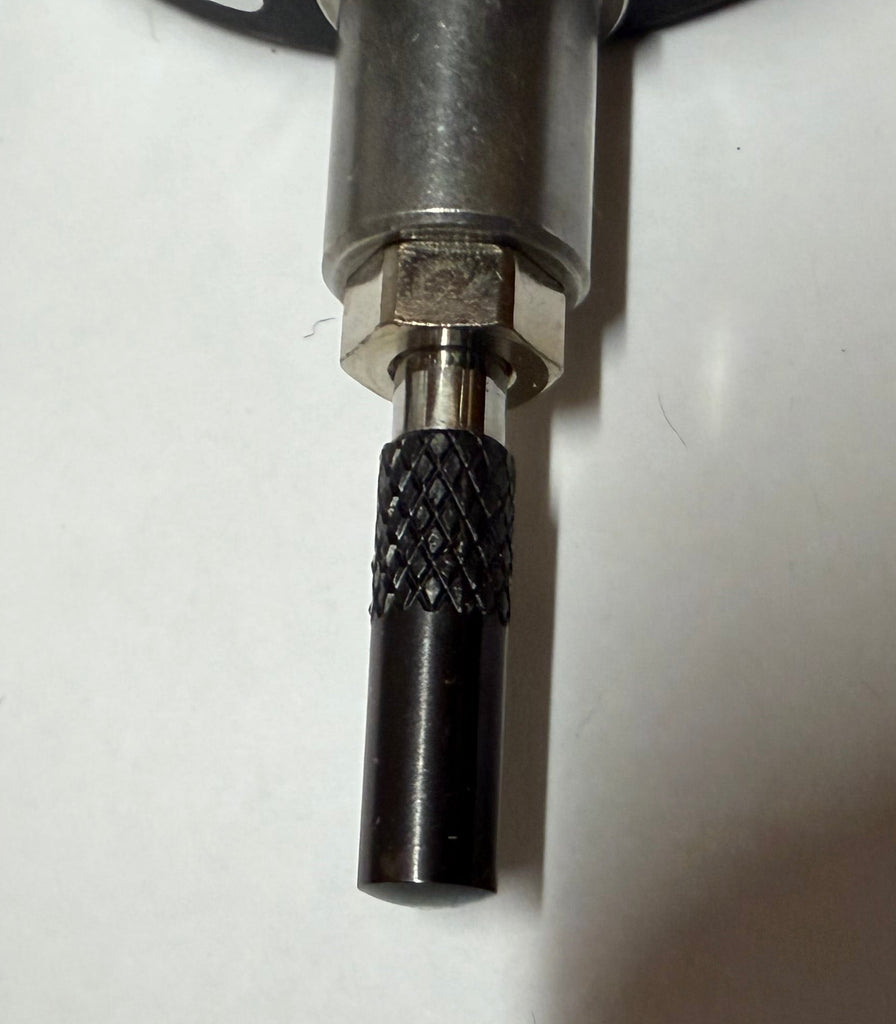

• Stem diameter: 0.375 in (9.525 mm)

• Stem length: 11.7 mm (0.46 in)

• IP rating: IP54 (dust‑protected, water‑resistant)

• Measuring force: 0.8–1.1 N

• Battery: CR 2450N 3 V lithium (≈2× longer life than prior models)

• Data interfaces: Digimatic, Opto RS‑232C, USB

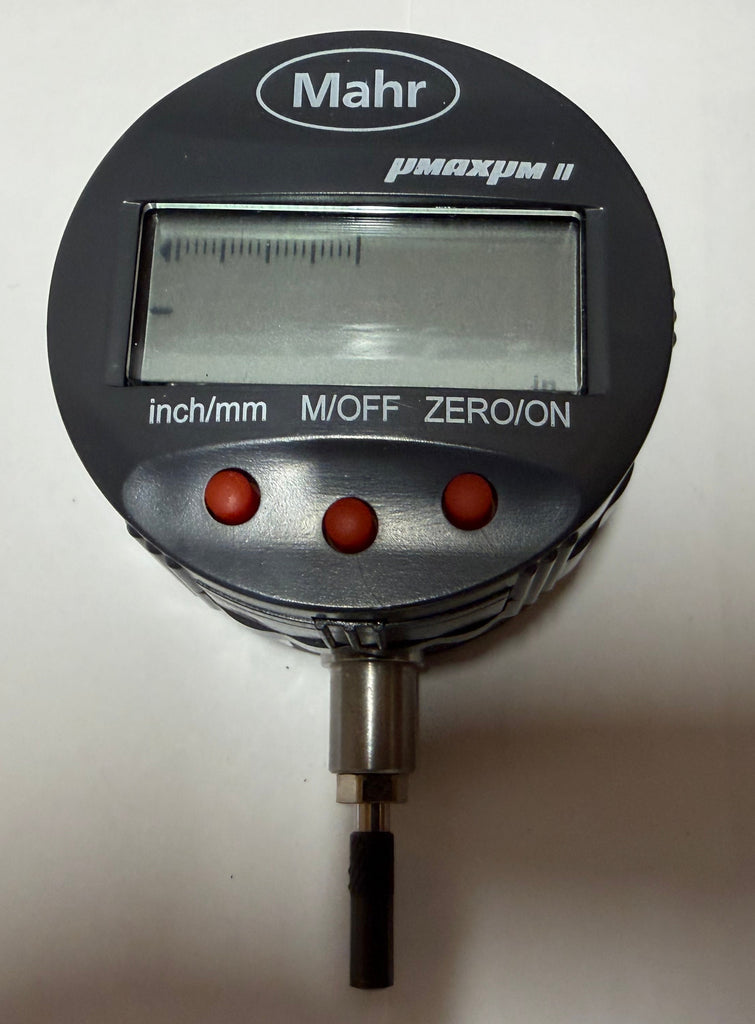

• Display: Large, high‑contrast digital + analog bar graph; 270° rotation; zero point retained after power‑of

• Absolute inductive transducer – no overspeed errors; position remembered after power‑off

• Selectable resolution in mm/inches

• Inch/metric mode with switchable resolution

• Preset and Go/NoGo display functions

• Data output via USB, RS‑232C, Digimatic, or Opto

• Auto power‑down for low battery consumption

• Calibratable (values retained after battery change)

• Rugged, contamination‑resistant design for shop‑floor use

• *Quality Used Item - professionally inspected, refurbished (if needed) and verified to meet or exceed the manufacturer's specifications. The following could possibly apply for this item: opened packaging, ID number, prior stickers or markings on gage and/or case.

NOTE: INDICATORS PRICED INDIVIDUALLY
