Mahr 5323010 Millimar P2004 M Inductive Measuring Probe, +/-0.08″/+/-2mm *New - Open Box*

Item Description:

• Product type: P2004 M
• Measuring range from: -2 mm
• Measuring range up to: 2 mm
• Distance of upper stop MIN: 2.2 mm
• Distance of upper stop MAX: 4.4 mm
• Distance of lower stop MIN: -2.2 mm
• Distance of lower stop MAX: 0 mm
• Linearity deviation within ±0.5 mm: 0.4 µm
• Linearity deviation within ±1.0 mm: 1.5 µm
• Linearity deviation within ±2.0 mm: 3 µm
• Repeatability fw (µm): 0.1 µm
• Measuring value hysteresis fu (µm): 0.5 µm
• Sensitivity deviation: 0.3 %
• Measuring force: 0.75 N ± 0.15 N
• Increase in measuring force: 0.2 N/mm
• Compatibility: Mahr VLDT
• Cable length: 2.5 m
• Reference temperature: 20 °C
• Working temperature range: 10 °C to 40 °C
• Operating temperature range: 10 °C to 40 °C
• Storage temperature range: -10 °C to 80 °C
• Temperature coefficient: 0.15 µm/°C
• IP protection category: IP 64
• Lifter / retraction: Standard model

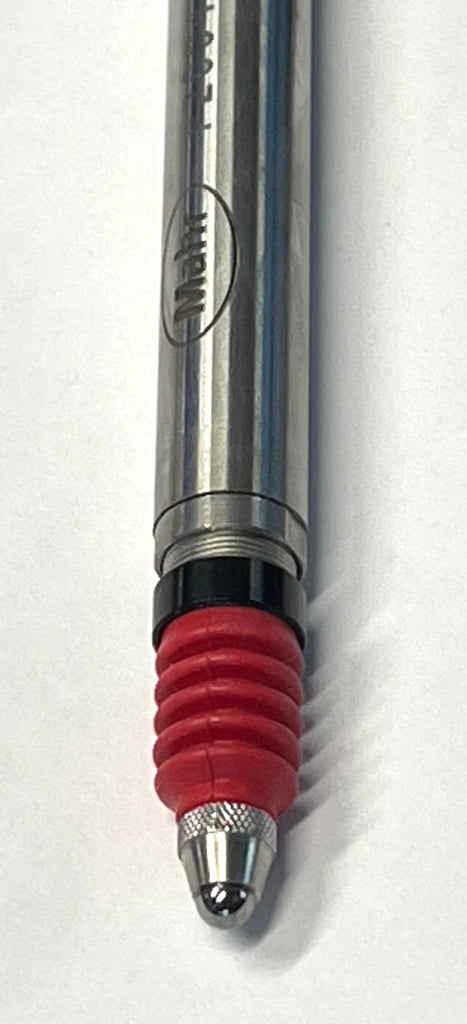

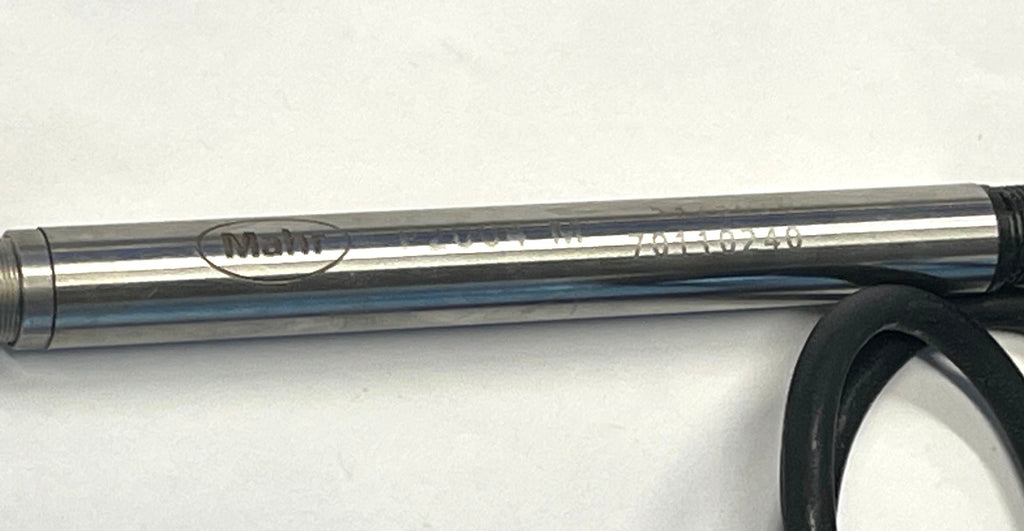

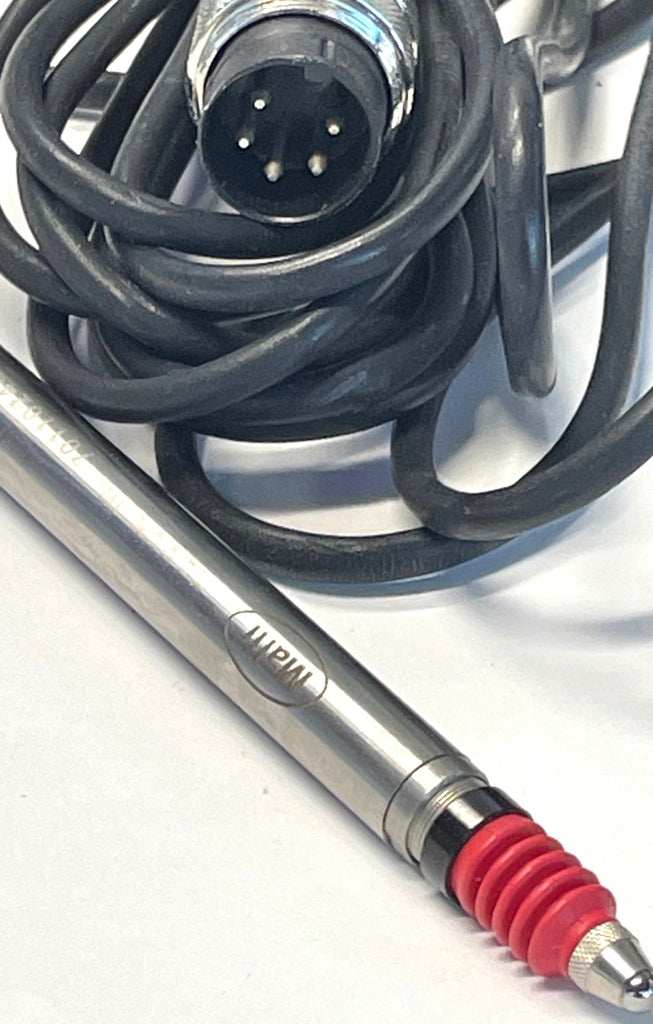

• The Mahr Millimar P2004 M is a high-precision Inductive Measuring Probedesigned for use with Mahr VLDT systems. Featuring a ±2 mm measuring range, this standard model delivers high accuracy and stability for a wide range of industrial measurement applications. With excellent electromagnetic shielding (EMC) and high linearity across the full measuring range, the P2004 M ensures precise and repeatable results.Built for durability and adaptability, the probe can be easily converted from axial to radial output using the included slip-on cap. Its chemical resistance makes it suitable for use in challenging environments, ensuring long-term reliability.
• *New - Open Box Item: Excellent condition. Original protective wrapping or bag may be missing or open. Packaging, box and/or case is intact but may have slight markings (see photo if available). No signs of wear on the item.
