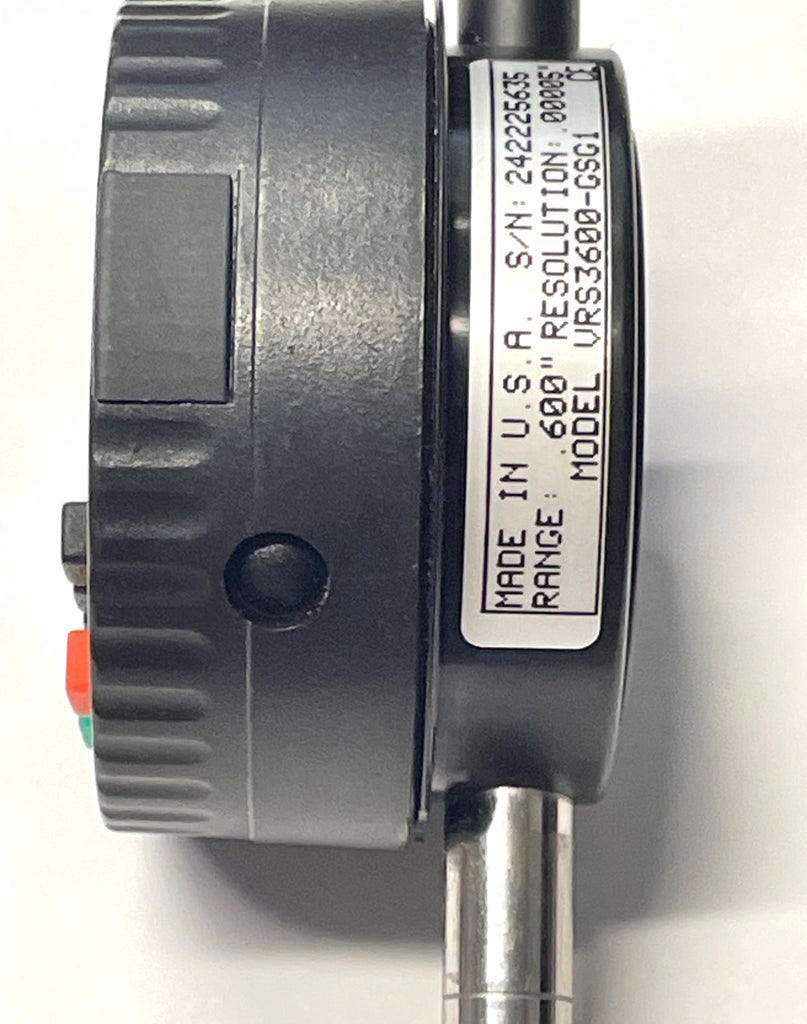

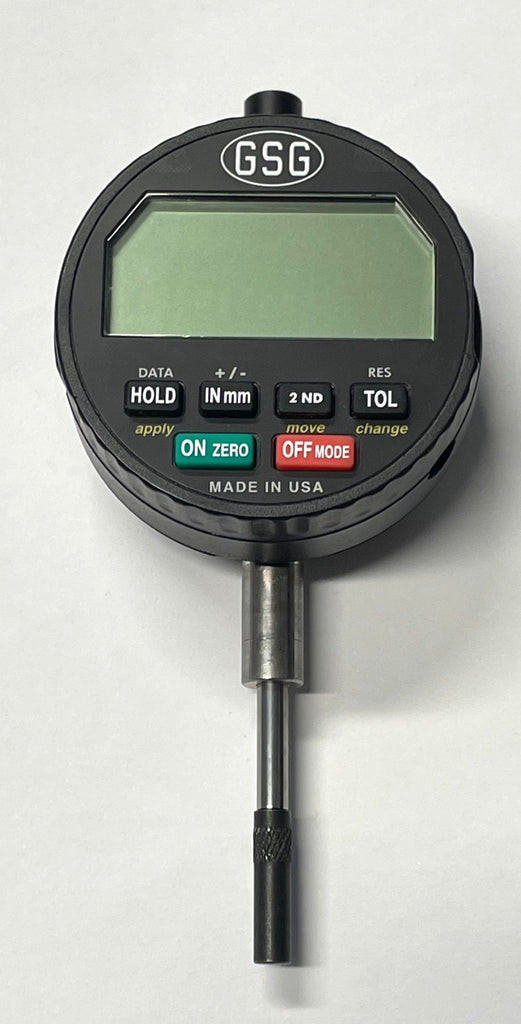

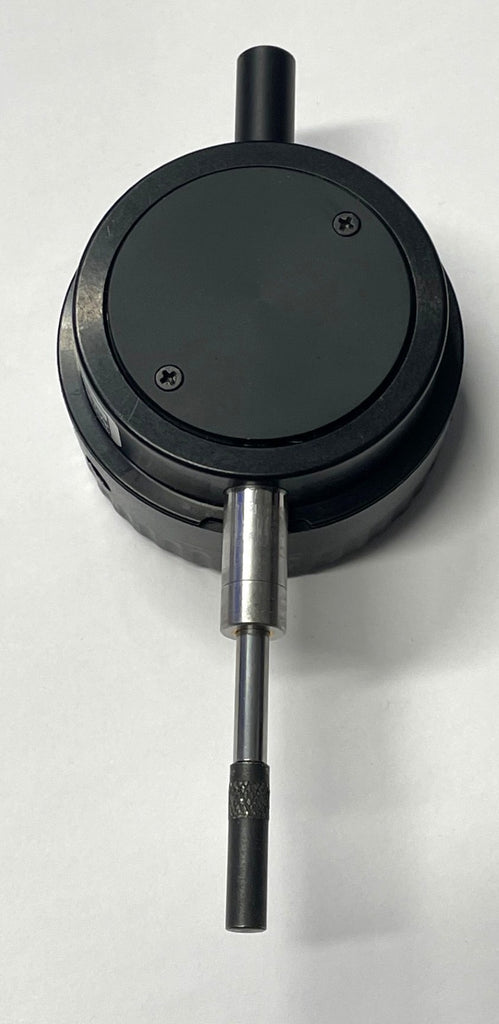

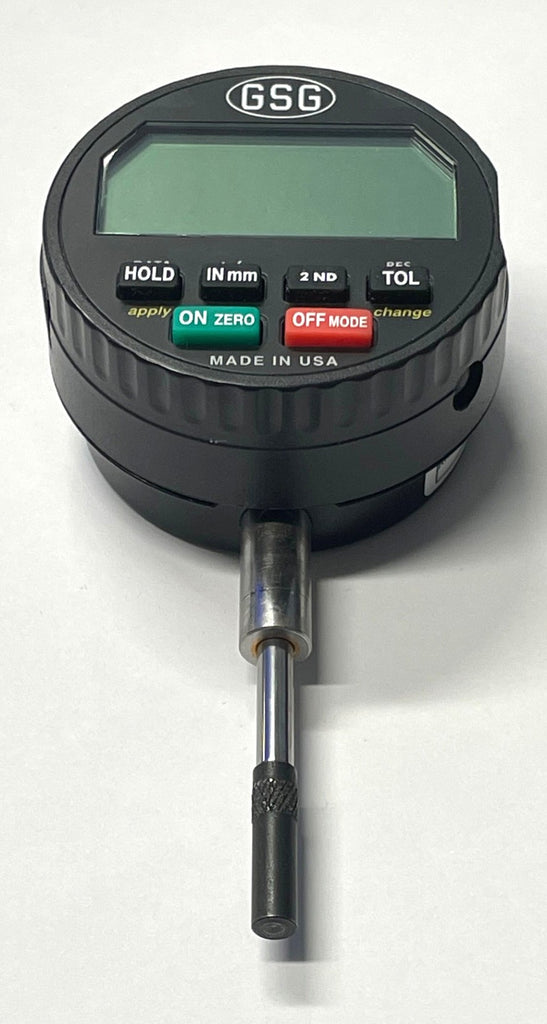

CDI VRS3600-GSG1 Digital Indicator Wireless Short Range Radio Module (Standard), 0-.600″ Range, .00005"/0.001mm Resolution *DEMO*
$ 175.00 | List Price: $ 450.00
Item Description
Range: 0-.600"
Resolution: .00005"/0.001mm
Absolute Sensor – Never lose position (even when replacing batteries)
Long Battery Life – Approximate Hours: Casual Daily Use +10,000 Hours; Average Daily Use +6,000 Hours; Wireless Communication Use 1,000 Hours
No Over-Speed Error – Fast spindle speeds
Fixed Scale – More robust, reliable, & compact design than a moving scale
3 Measuring Modes: INC (Incremental), PRESET (Change Zero Value), TIR (Total Indicator Reading) Scroll through TIR, Max, and Min Values
Large Display with 1/2″ Tall Numbers
Off Button
Rotating Bezel 270 degrees
TOL (Tolerance) Program HI / LOW Values
Red (No G0) & Green (Go) LEDs for TOL (Tolerance) and DATA
+ / – Travel Direction Changeable
Floating Zero
Resolution -Changeable
Programmable Ratio
IN mm Button – Change displayed units
Low Battery Warning Icon
Programmable Lock
Data Send Button
Data Cables USB, MTI (Digimatic), RS232
200 Data Measurements Stored in Indicator.
Built-In Wireless Short-Range Radio Module (standard equipment). Download “Electronic Dial Indicator” App in iOS and Android Stores.
Built-In MicroRidge Wireless Long-Range Radio Module (optional). MicroRidge Radio Receiver Sold Separately
CALC software (optional) allows for measurement Formula & Lookup Tables to be downloaded into indicator.
Made In USA
Chicago Dial Indicator (CDI VRS3600) private labeled with GSG
Demo item - professionally inspected and verified to meet or exceed the manufacturer's specifications.The following could possibly apply for this item: demonstration use only, opened packaging, missing box and/or case.
Multiple quantities in stock, photo(s) represent condition of all. The item you receive will be either the item pictured or comparable (or better) in appearance.
