Item Description

• Measuring range ± 1mm
• Bolt travel 4.3mm
• Repeatability 0.01 um
• Hysteresis 0.02 um
• Max. perm. errors L inmm
• 0.2 + 3 x (L x L x L) um
• Degree of protection IP65
• Weight Mobile weight: 6 g
• Working temperature 20 °C ± 0.5
• Resting position Factory setting: -1.2mm
• Adjustable: -2.2 ÷ 0.1mm
• Coefficient of linear expansion 0.15 um/°C

• Fixing shank material: nickel plated
• Measuring bolt material: stainless steel
• Protection bellow: Nitrile
• Ball insert: tungsten carbide

• Fixing shank: Ø 8mm
• Insert thread: M2.5
• Ball insert: Ø 3mm
• Cable: 2 m

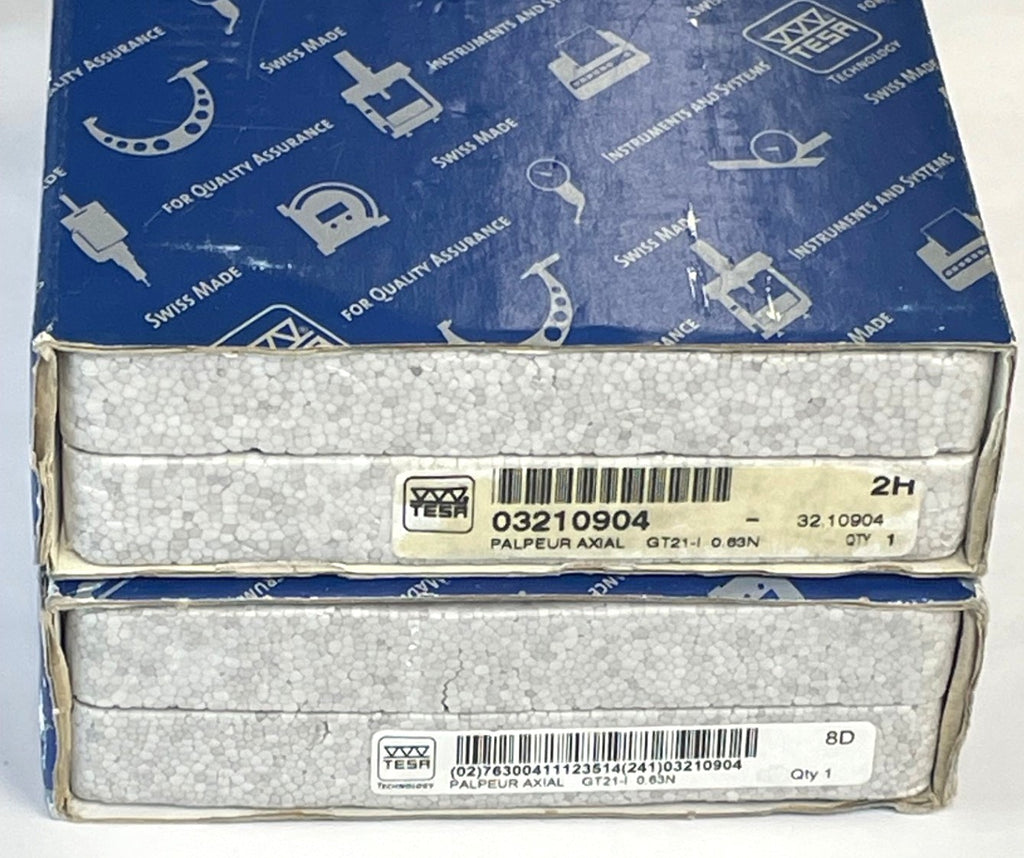

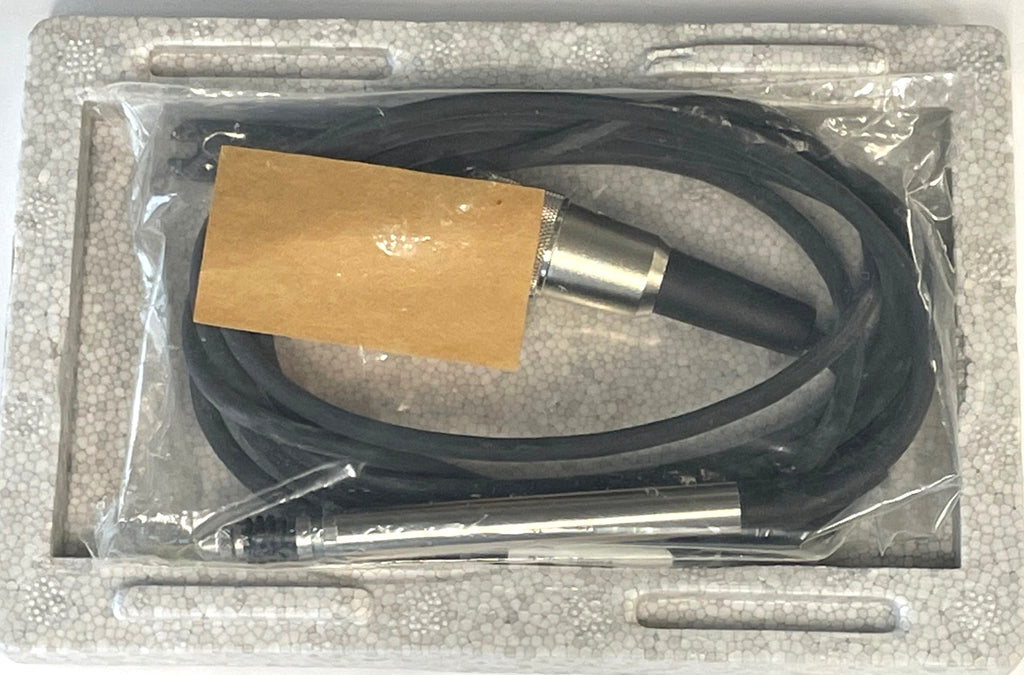

• *New - Open Box Item: Excellent condition. Original protective wrapping or bag may be missing or open. Packaging, box and/or case is intact but may have slight markings (please see photos). No signs of wear on the item.
