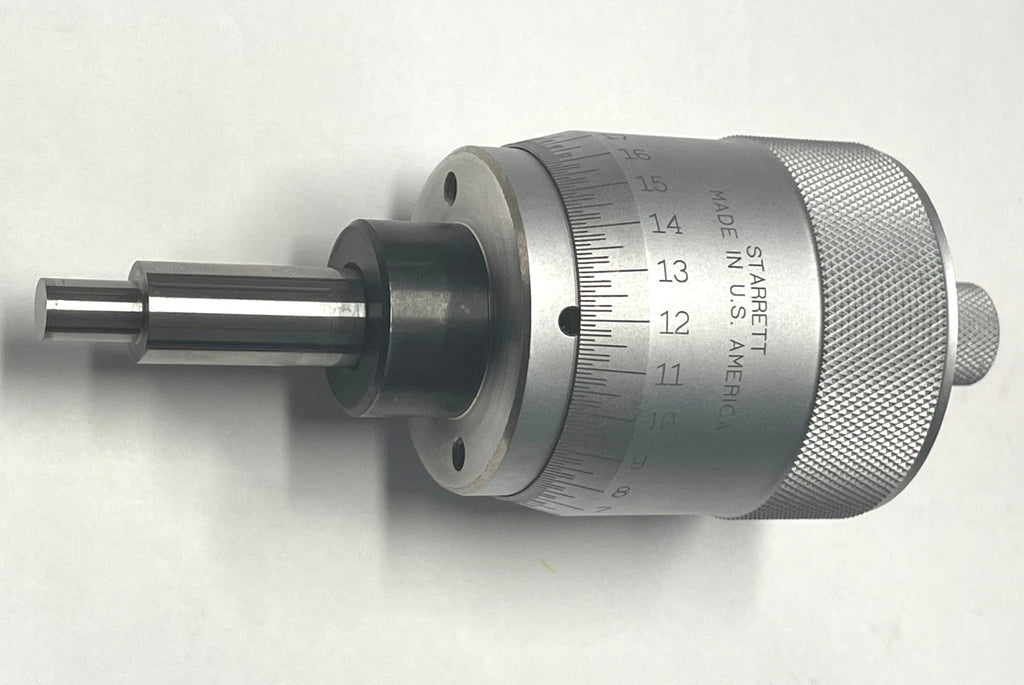

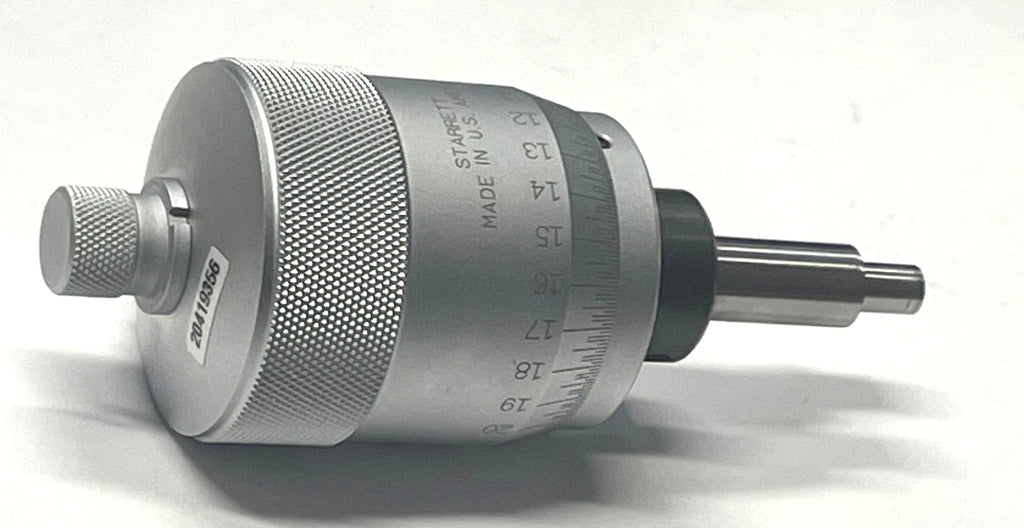

Starrett T465XSP-1 Large Micrometer Head, 0-1" Range, .0001" Graduation *USED/RECONDITIONED*

Item Description

• Range: 0-1"

• Graduation: .0001"
• These large micrometer heads are designed for use with electronic equipment
  requiring ultra-fine adjustment for machine tools, fixtures, special gages and
  tools, special mountings, or wherever micrometer accuracy in setting and
  adjustment is required.
• 2-1/16" (52mm) thimble diameter with widely spaced
  .0001" or 0.002mm graduations for direct reading
• All graduations are direct reading – no vernier lines
  to match
• All reading surfaces have Starrett satin chrome finish as
  the no-glare background for the sharp lines and figures
• All graduations on sleeves and thimbles have advanced
  styling with staggered graduations for easy reading

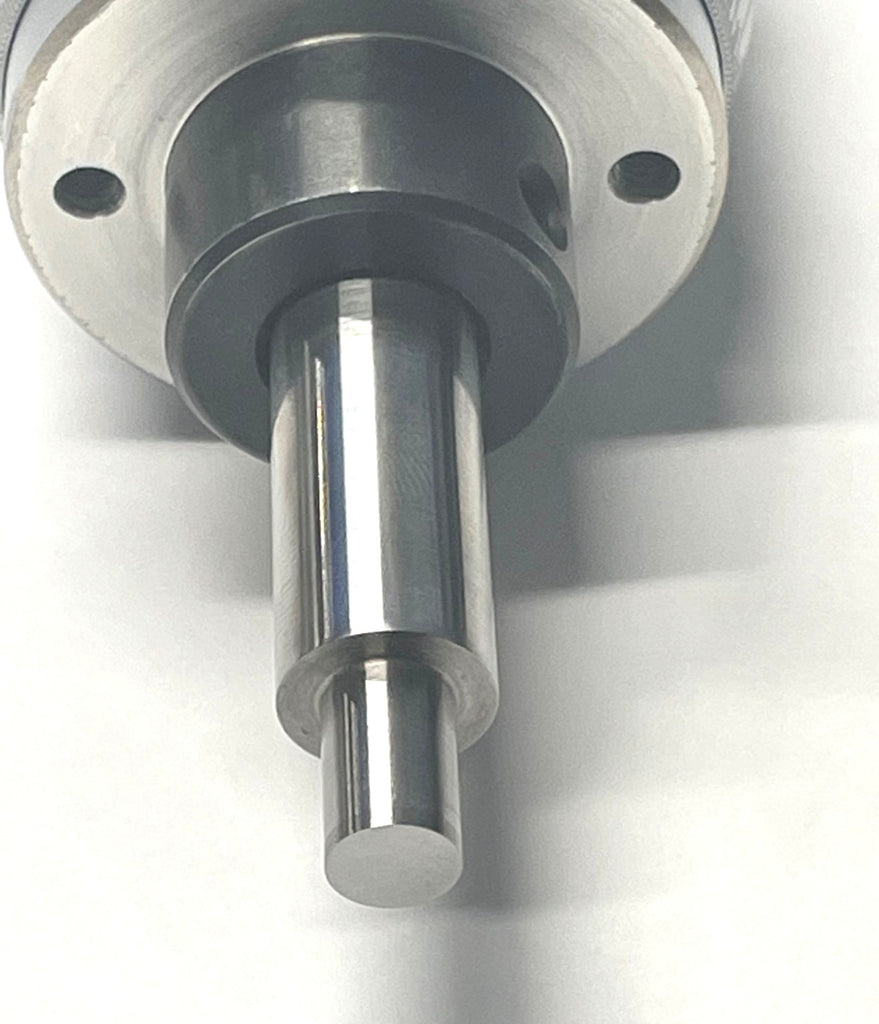

• The spindle is carbide faced for long life
• Thimble and sleeve are made of aluminum to reduce weight
• Furnished with a speeder (not a ratchet) for
  quicker adjustment
• Extremely hard and stable one-piece spindle for
  accuracy and long-life
• Micro-lapped measuring face for flatness and squareness
• Quick and easy adjustment
• *Quality Used Item - professionally inspected, refurbished (if needed) and verified to meet or exceed the manufacturer's specifications. The following could possibly apply for this item: opened packaging, ID number, prior stickers or markings on gage and/or case.
