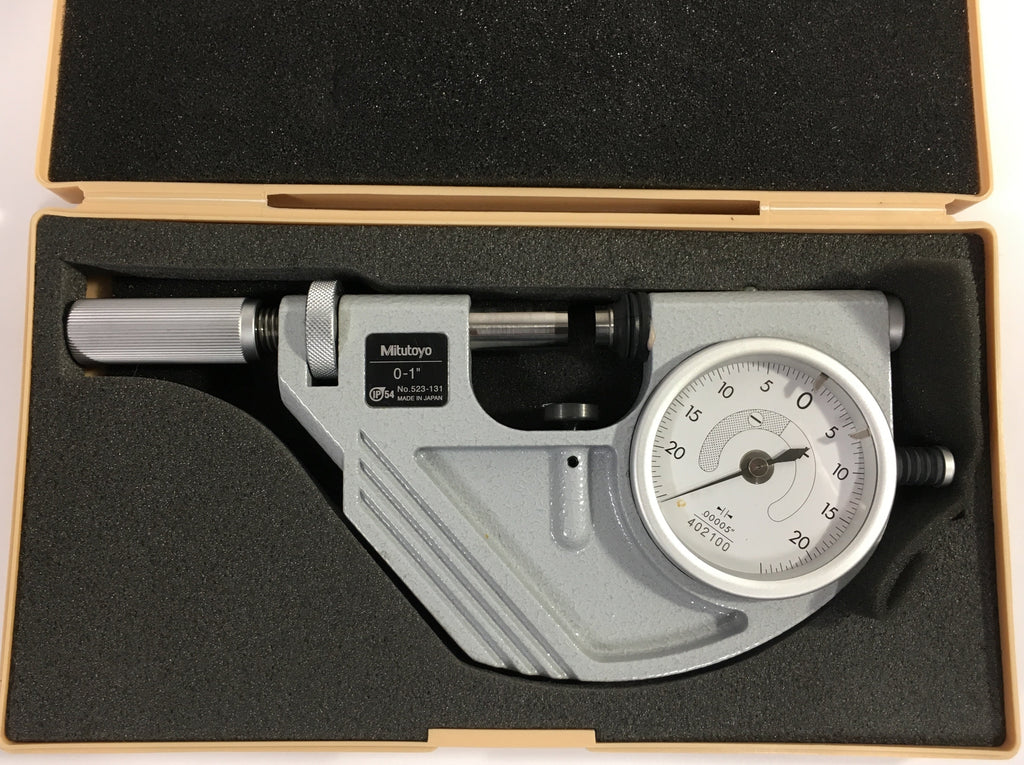

Mitutoyo 523-131 Dial Snap Meter, 0-1" Range, .00005" Graduation, +/-.0023" Indicating Range *SHOWROOM ITEM 23*

$ 565.00 | List Price: $ 942.00

Item Description

  • Range: 0-1"
  • Graduation: .00005"
  • Indicating range: +/- .0023"
  • Dial indication accuracy: .00005”
  • Indication repeatability: .00002”
  • Flatness: .000012”
  • Parallelism: .000024”
  • Measuring force: 5 - 10N (500 - 1000gf)
  • Direct GO/NO-GO judgment for mass produced parts
  • Spindle diameter: .425"
  • IP protection level: 54
  • With fitted plastic case
  • Showroom Items: Limited Quantities. Excellent condition.  Original protective wrapping or bag may be missing or open.  Packaging, box and /or case (if applicable) is intact but may have slight markings  No signs of wear on the item (used for display and/or demonstration purposes only).  All gages come with Mitutoyo one year product warranty and will be professionally inspected and verified prior to shipment by our ISO 9001:2015 ACCREDITED SERVICE DEPARTMENT to meet or exceed the manufacturer’s specifications.  Long form certification available upon request (additional charge for long form certification applies)
We currently have 1 in stock.
